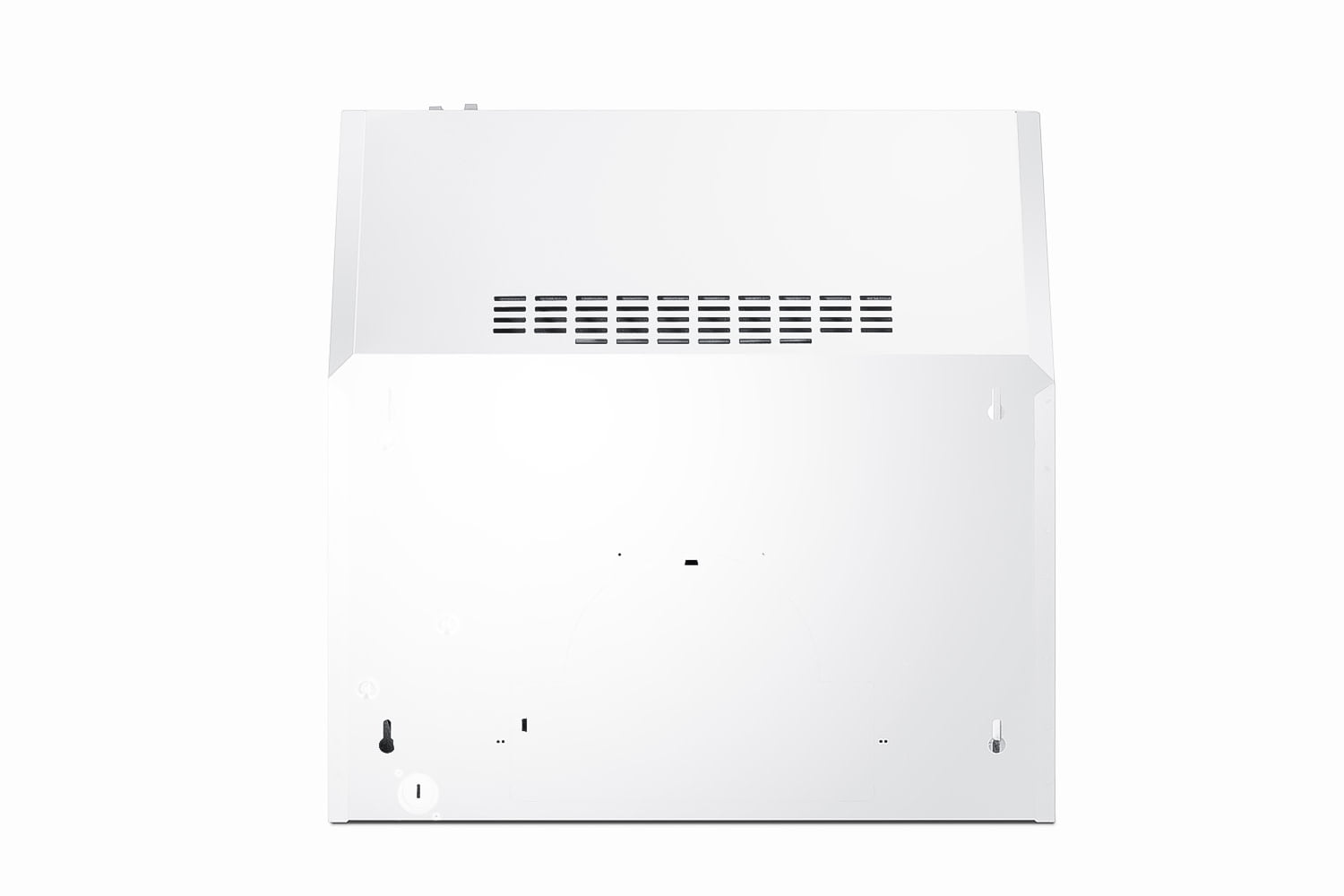

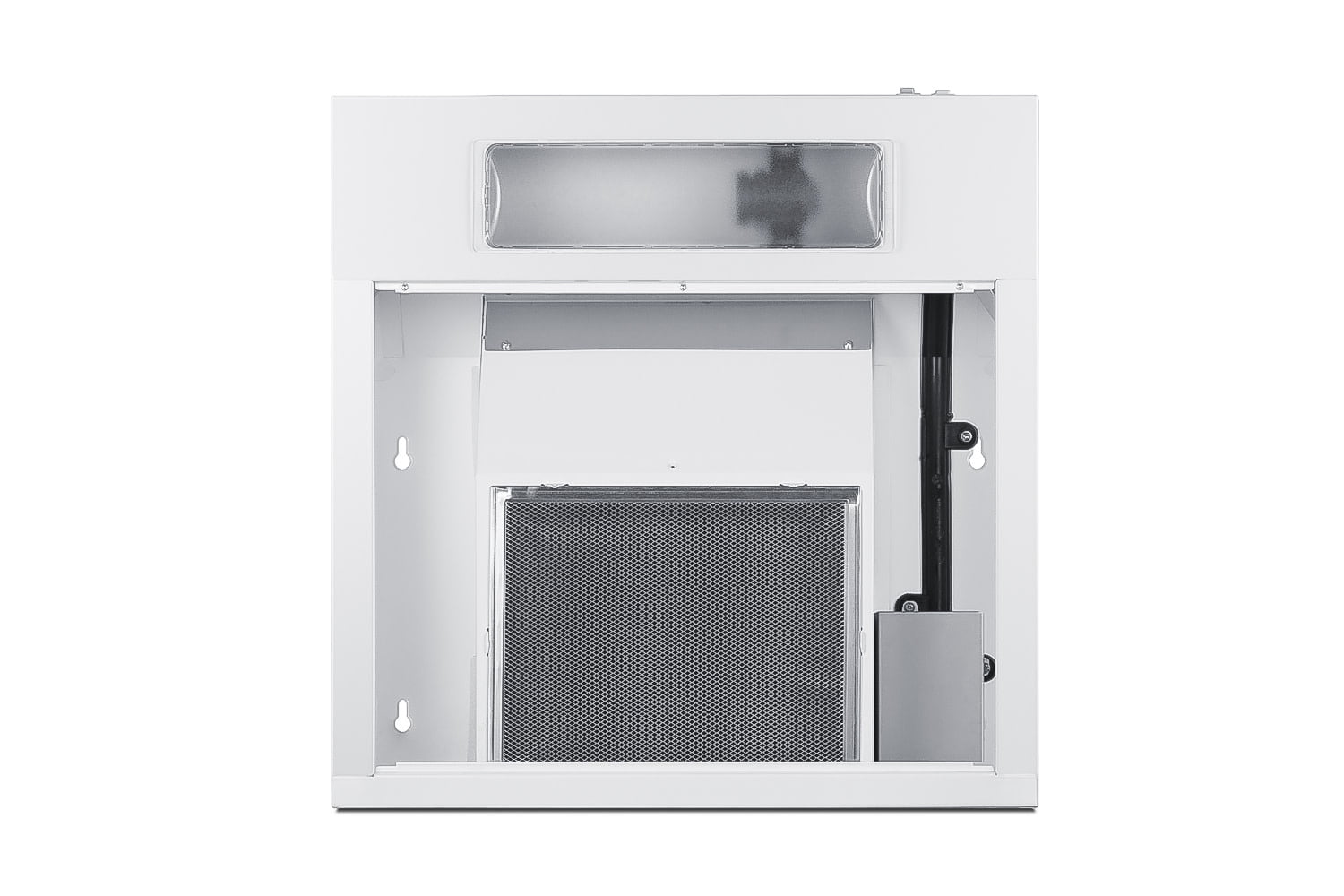

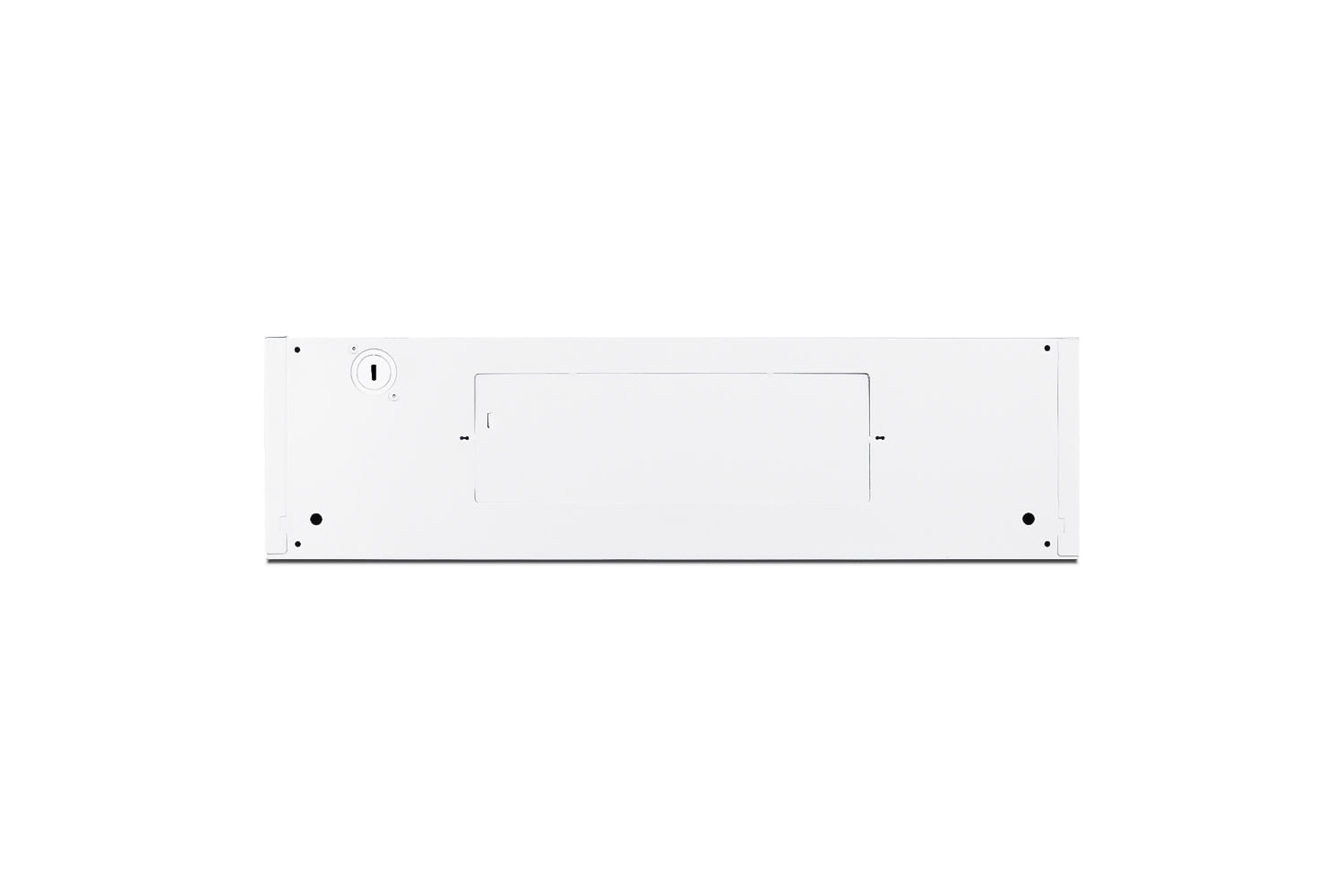

Summit's selection of specialty appliances includes accessible range hoods specially designed to be installed in compliance with Section 308 and 309 of the ADA Guidelines. Model HC20WWADA is a 20" wide range hood ideal for apartments, senior living kitchens, hotel suites, and other smaller spaces. It comes in a classic white finish constructed from 21 gauge galvanized steel for a clean look and durable design. We include a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height in accordance with ADA guidelines. The fan can be set at a high or low setting to best meet your ventilation needs. This unit can operate at 270 CFM for thorough ventilation. Airflow is directed upwards at a slight angle, ensuring smoke and odors won't blow towards the home chef. This hood ships for ductless/recirculating ventilation (where no exhaust connection to the outside is available) but is convertible for horizontal or vertical ducted ventilation (3 1/4" x 10" rectangular ducting or 7" round, transition required). We include a combination aluminum mesh/charcoal filter to absorb grease, smoke, and odors. This unit accepts a standard light bulb (not included). Both the filter and lens cover snap in place, with no tools required to change out as needed. Note: this hood does not include a power cord and is designed to be hard-wired by a licensed professional. In addition to this ADA compliant range hood, Summit manufactures this series in additional colors, as well as shell hoods and wall-mounted European hoods. Browse the full Summit product line to explore your options. SPECIFICATIONS : Type : Range Hood. Cabinet : White. US Electrical Safety : ETL. Canadian Electrical Safety : ETL-C. Amp : 1.7. Voltage/Frequency : 115 V AC/60 Hz. DIMENSIONS : Height of Cabinet : 5.5. Width : 20. Depth : 20.
| Maximum air volume | 270 CFM |
|---|---|
| Range hood type | Under Cabinet Range Hoods |
| Mount type | Wall Mount |
| Ducting type | Convertible Vent |
| Brand | Summit Appliance |
| Finish | White |
| Sones rating | 6 |
| Body material | 21 gauge galvanized steel |
| Height | 5.5 in |
| Color | MultiColor |
| Rec. use | Residential |
| Rec location | Indoor |
| Light bulb type | Incandescent |
| Has written warranty | No |
| Model | HC20WWADA |
| Amps | 1.7 Amps |
| Volts | 115 V |
| Has nrtl listing certification | N |
| Assembled product weight | 16.5 lb |
| State chemical disclosure | None |
